What insulation options work with metal roof panels?

Insulation for a metal roof panel system is a complete roof build-up rather than a loose material placed beneath the sheets. Its performance depends on the insulation type, thickness, support, joints, vapour control, fixings and the way the roof meets walls, eaves, ridge and openings. The correct specification is therefore determined by the building’s use and the required balance of thermal, acoustic, fire and moisture performance.

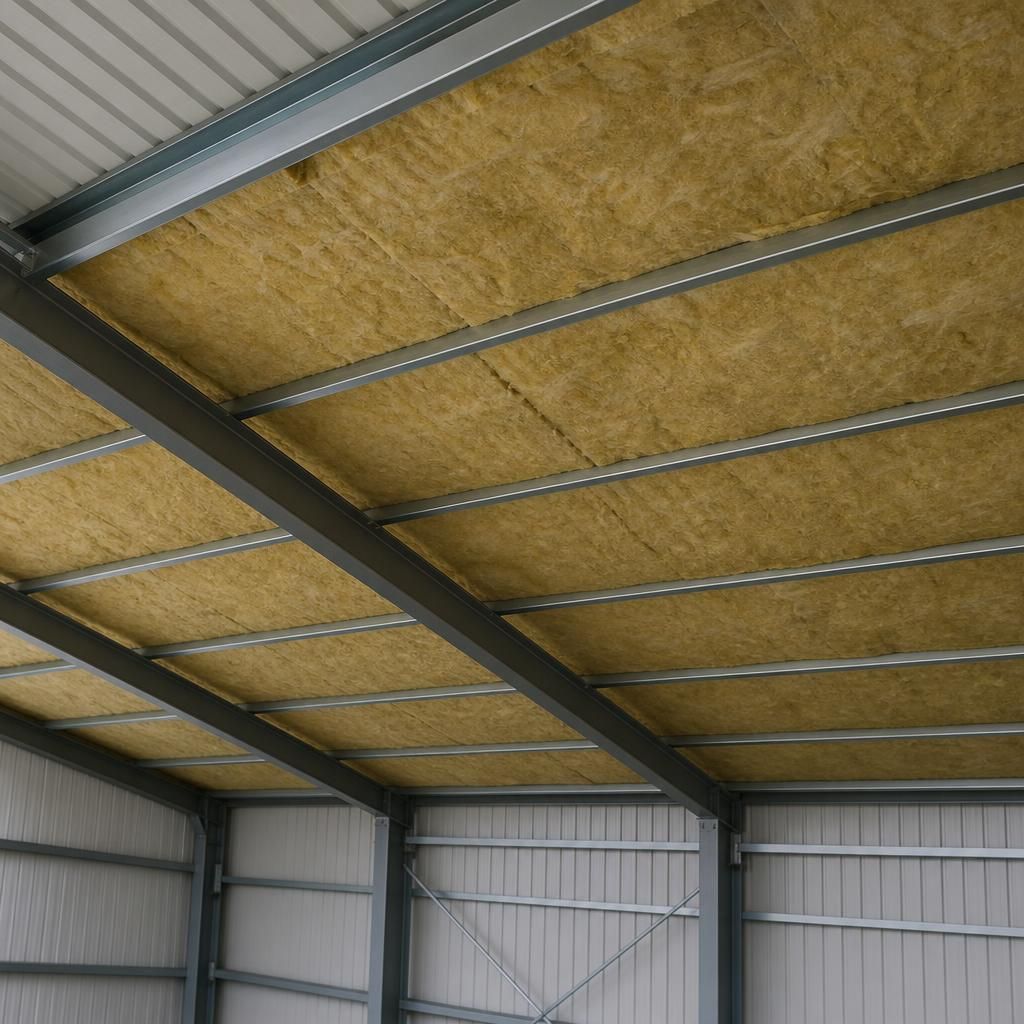

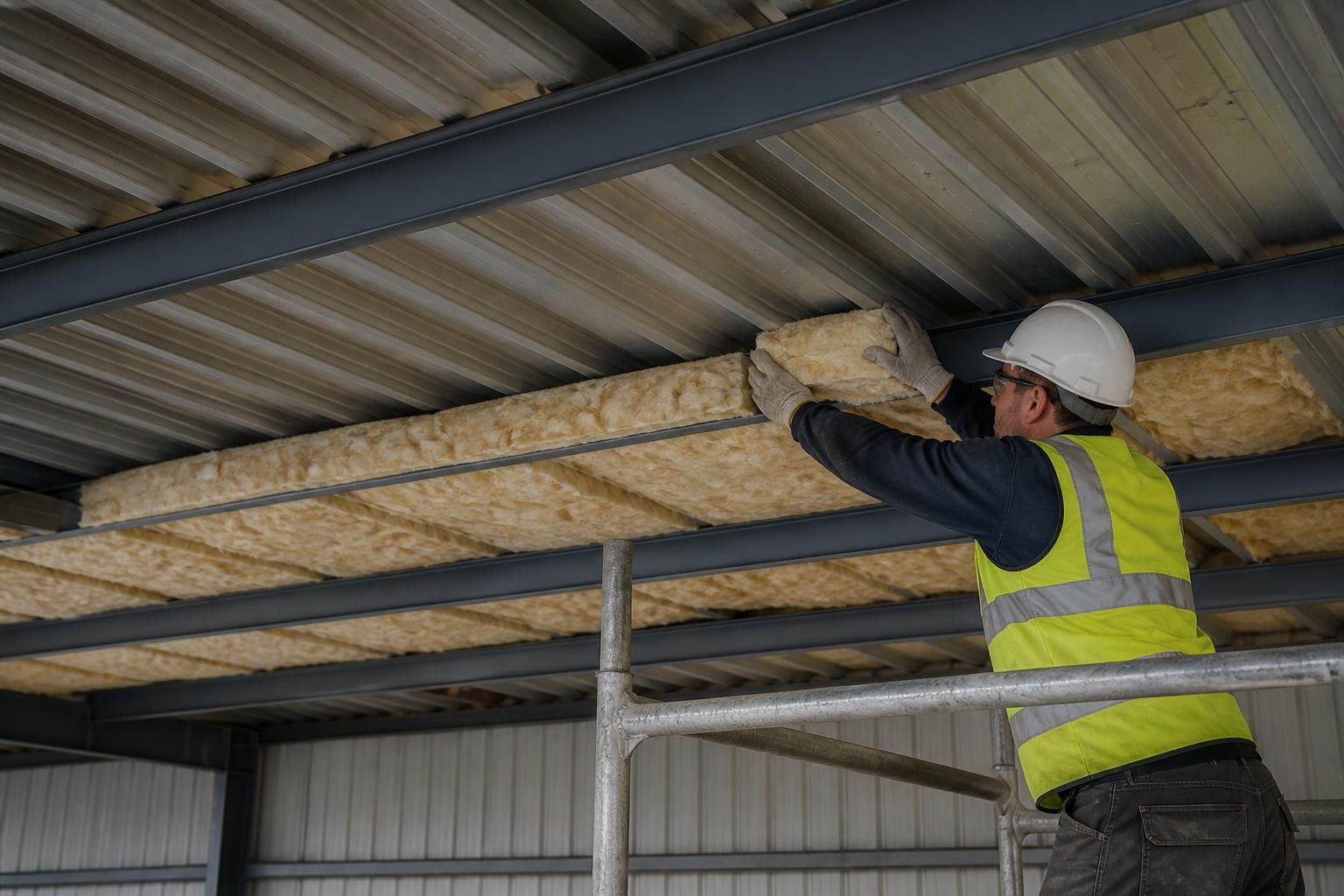

Site-installed quilt systems are commonly used where insulation is fitted beneath profiled roof sheets. The quilt must be supported so that it does not sag into the building or leave open channels through which heat can escape. Support arrangements may include liner sheets, netting or other components designed as part of the roof assembly. Joints should be closely butted, with particular care around purlins, fasteners, roof lights and edge details.

Glass fibre and mineral wool products are available in different densities and constructions. Mineral wool is often considered where acoustic absorption or reaction-to-fire performance is important, while glass fibre quilt can provide a practical solution for many agricultural and industrial roof applications. The product specification should be checked rather than selecting solely by material name, as facing, density, support requirements and declared thermal performance vary between systems.

Rigid insulation boards, including PIR-based boards, provide a relatively firm layer that can be used within a designed roof build-up. They need accurate cutting and secure support, because gaps at board joints, perimeters and penetrations can reduce the effectiveness of the insulation. Proprietary jointing methods, tapes or seals may be required to maintain continuity, and the boards must be compatible with the roof sheets, liner and fixing system.

Factory-made insulated panels combine external metal sheets with a manufactured insulation core. Their main benefit is that the roof, insulation and internal lining are supplied as a coordinated component, reducing the number of separate layers installed on site. Performance still depends on correct panel joints, fastener placement and detailing at the ridge, eaves, verges and penetrations. The panel specification should be checked for its declared thermal, fire, acoustic and structural characteristics rather than treated as suitable for every building by default.

For agricultural buildings, moisture control deserves particular attention. Livestock, stored crops, wash-down activities and changes in outside temperature can all increase the risk of condensation. A roof should be assessed for ventilation, internal humidity and the position of the vapour-control layer. Any layer intended to restrict vapour movement must remain continuous around laps, penetrations and junctions; an isolated strip of insulation cannot compensate for poorly sealed detailing.

Thermal bridges occur where heat can bypass the main insulation, including at steel purlins, rails, eaves, ridge details, openings and fixings. These areas can become colder than the surrounding roof and may contribute to surface condensation or local heat loss. A suitable design limits interruptions to the insulation and specifies how each junction is closed. Roof lights also need consideration, since replacing an insulated panel with a different material changes the thermal and moisture behaviour of that area.

Acoustic requirements may influence the choice as much as temperature control. Manufacturing equipment, rainfall on metal sheets and vehicle movement can create unwanted noise, while agricultural buildings may require control of sound travelling between internal spaces. Mineral wool products and lined roof systems can offer different acoustic characteristics from rigid boards or standard insulated panels. The required result should be identified at the design stage, as adding a layer later may not address transmission through junctions or the building structure.

Fire performance must be assessed for the complete roof construction. The core material, facings, joint design, penetrations and supporting steelwork can all affect the classification of the finished assembly. Requirements may differ between an open-sided agricultural shelter, a storage building, a workshop and an occupied industrial space. Product declarations and project-specific guidance should be reviewed before the roof build-up is selected.

Installation quality is as important as the insulation material itself. Before work starts, the design should identify:

• the required thermal and moisture-control performance;
• how the insulation will be supported between and below the roof members;
• how laps, joints, edges and penetrations will be sealed;
• how the roof will connect to walls, doors, roof lights, ridge and eaves;
• how maintenance access will be provided without crushing or displacing the insulation; and
• whether the selected materials are compatible with the building’s internal environment and corrosion-control requirements.

Where the building has a simple storage use, a straightforward quilted build-up may be appropriate. Workshops, occupied areas, temperature-sensitive storage and buildings with high internal humidity usually need more detailed coordination between insulation, ventilation, lining and condensation control. The roof design should be assessed as a system, with the insulation specification coordinated with the steel frame, purlins and metal roof panels before fabrication and installation.
