What site information is needed to design a steel framed home?

The information needed to design a steel framed home falls into four connected categories: the proposed building, the loads it must carry, the conditions around the plot and the requirements that affect how it will be built. A frame designer uses this information to determine the steel member sizes, frame spacing, bracing, connections, support positions and interface details with the rest of the construction.

Start with an accurate building brief. The design team will need the intended number of storeys, the overall footprint, floor-to-floor heights and the proposed roof form. Room layouts are also important because large open-plan areas, stair openings, double-height spaces and changes in floor level can affect the position of columns, beams and bracing. Provide the latest architectural drawings rather than preliminary sketches wherever possible, including plans, sections and elevations.

The brief should identify significant openings and features such as bi-fold doors, large areas of glazing, rooflights, balconies, dormers, chimneys and attached garages. Their locations and dimensions influence the load paths through the frame. The proposed external wall, roof and floor build-ups should also be identified, as their weights and fixing requirements need to be allowed for during structural design.

State the loads and performance requirements. In addition to the self-weight of the frame and building materials, the design may need to allow for occupants, furniture, storage, plant, solar panels, suspended ceilings and other permanent or imposed loads. Heavy items should be identified at the design stage, particularly where they are concentrated in one area or fixed to the roof or walls.

• Roof construction, coverings and any planned equipment;
• Floor construction, finishes and areas likely to carry heavier loads;
• Internal walls, partitions and potentially removable layouts;
• Ceiling systems, service zones and suspended equipment;
• Glazing, doors and other openings that interrupt the normal wall structure;
• Any future alteration that may require a wall or column to be removed.

These details allow the structural engineer to establish sensible load paths from the roof and floors into the foundations. They also help identify where additional steelwork may be required around openings or where the architectural layout needs coordination with bracing.

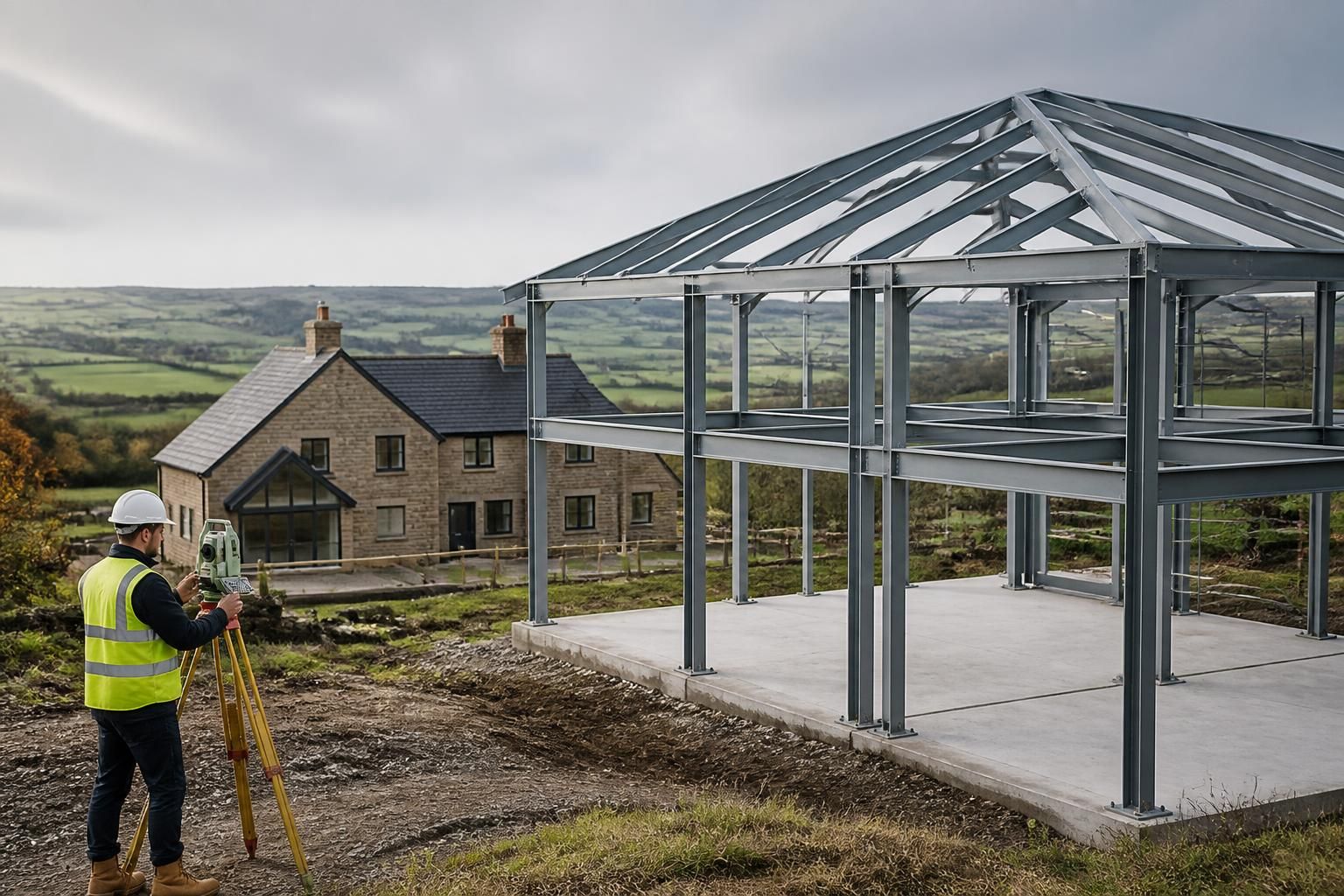

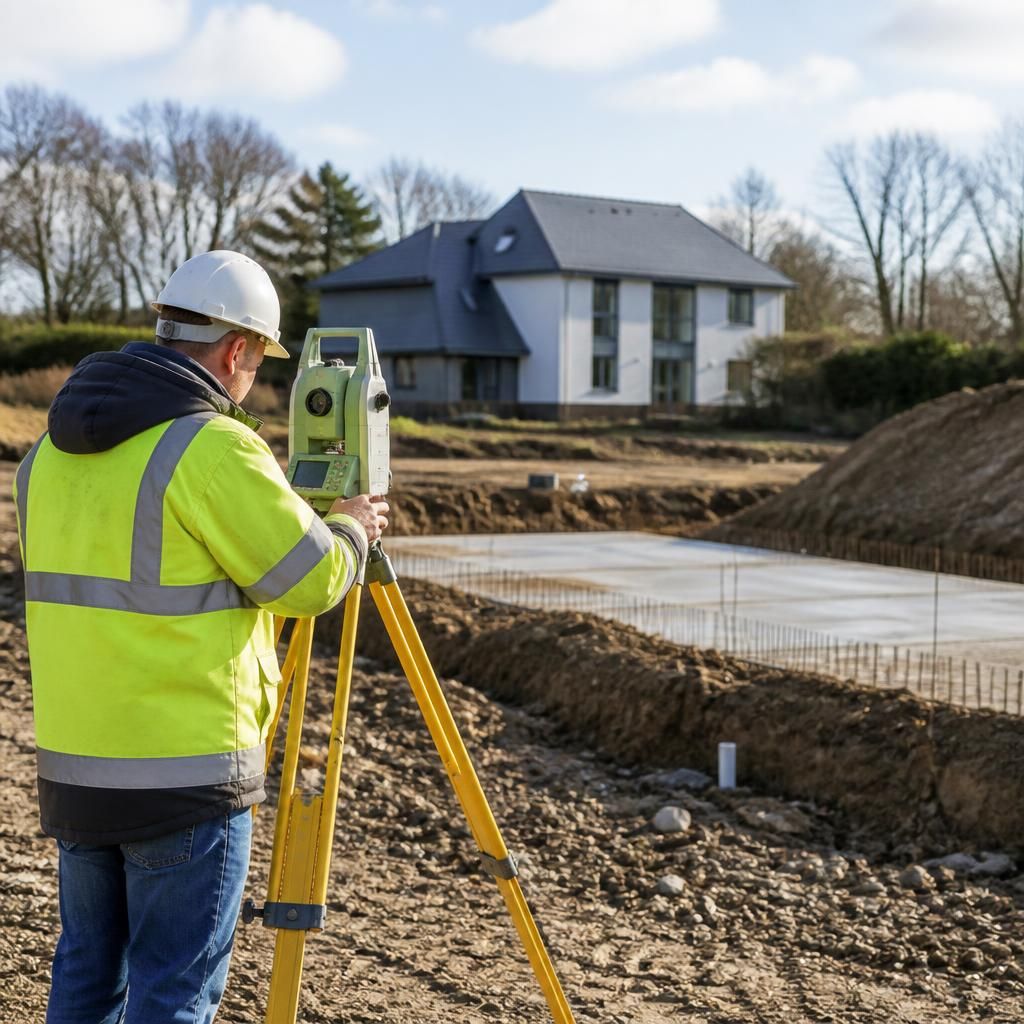

Provide information about the site’s immediate surroundings. The designer should be told about adjoining buildings, retaining structures, embankments, mature trees, overhead equipment and any features that could affect construction or the movement of the frame. Nearby structures can influence the available working space and may require careful detailing at abutments, junctions or changes in level. Photographs are useful alongside formal site information because they can reveal obstructions and features not obvious on a drawing.

Local exposure is also relevant. A home in an exposed, elevated or coastal setting may be subject to different wind conditions or corrosion considerations from one in a sheltered inland location. The design information should therefore identify the site’s environmental character, including any exposure to salt-laden air or unusual weather conditions. This helps determine protective treatment, connection detailing and the assumptions used for structural calculations.

Confirm how the steel frame will connect to the rest of the build. The design package should coordinate the steelwork with the intended foundation arrangement, floor construction, wall build-up, roof structure and external finishes. Details are needed for items such as holding-down bolts, bearing plates, masonry support, cladding rails, joist connections and the fixing of non-structural elements. If another engineer is designing the foundations, the frame designer will need an agreed exchange of reactions, support locations and connection requirements.

Building services should be considered before the frame is finalised. Large ducts, ventilation routes, soil pipes, flues, electrical intake equipment and plant may require openings or reserved zones. Drilling or cutting steel on site should not be treated as a substitute for designing these penetrations into the frame. Early coordination reduces the risk of services conflicting with beams, columns or bracing.

Include the information needed for compliance and coordination. The architect and design team should identify the applicable Building Regulations requirements, fire strategy, acoustic targets, thermal specification and any unusual structural or architectural conditions. Fire protection can affect the way steel members are enclosed or protected, while acoustic and thermal build-ups influence the available space around the frame. The intended construction sequence may also affect temporary stability and the need for temporary works during erection.

Before design work begins, check that all drawings use the same revision, dimensions and reference system. A frame designed from conflicting architectural information can require revisions to connection details, openings or support positions. It is good practice to record outstanding assumptions and confirm them before fabrication drawings are issued.

Where information is incomplete, the designer should identify the uncertainty rather than silently make a permanent assumption. A preliminary design can proceed using stated assumptions, but the final steelwork should be based on confirmed architectural details, coordinated structural requirements and reliable site information. This is particularly important for foundation interfaces, unusual loads, large openings and any feature that may affect the stability of the completed home.
